Load cells are fast becoming an important part of any lifting system and we can offer a range of products to suit your requirements.
The load cells can be integrated into our basic motor controllers or into our CPAP Automation system to monitor loads.

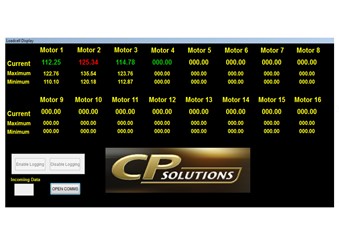

We also offer a software package so you can monitor the load cells on a laptop.
The monitoring is updated five times a second to give you excellent resolution and control of your load. Upper and lower limits are programmable for each load cell and the percentage tolerance can be set.
The load cells can be integrated into our basic motor controllers or into CPAP our Automation system to monitor loads. We can also offer a software package so you can monitor the load cells for your computer.
The monitoring is updated 5 times a second to give you excellent resolution and control of your load. Upper and lower limits are programmable for each load cell or a percentage tolerance can be set.

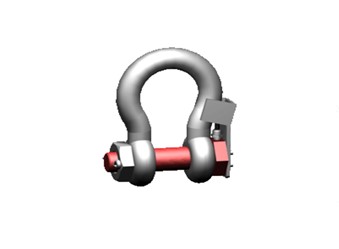

Shackle Load Cells are designed for lifting and weighing in rugged or harsh environments.
The shackle pins are forged from high tensile carbon steel and are machined to an exacting specification. The basic shackle uses the Crosby G2130 (1-25tonne) and G2140 (40-400tonne) series.
This range of load cells is Proof Loaded to 150% of the normal rated load.
The load cell shackles are available in a range from 1 tonne to 400 tonne. The load cells are internally gauged and the whole instrumentation area is sealed to IP67, to protect it in service.
They are simple to install and are available in standard shackle sizes. As an option, a rotating bobbin can be supplied, to centralise the load and to minimise any point-load effects when the shackle is placed under load.
We are always pleased to discuss any special requirements that can be accommodated. The CPSolutions loadcell can be supplied on it's own or combined with our extensive range of control gear to provide a complete load monitoring system.
